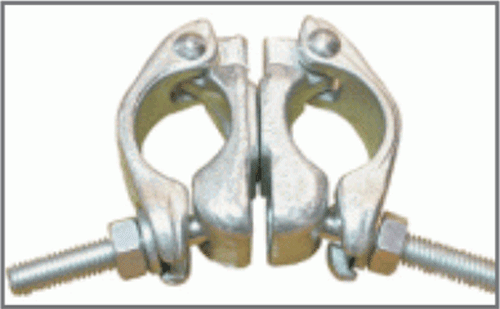

Forged Right Angle Couplera Size : 48mm, 51mm
Min. Slip Load : 12.5 KN
Min Distortion Load : 30 Kn

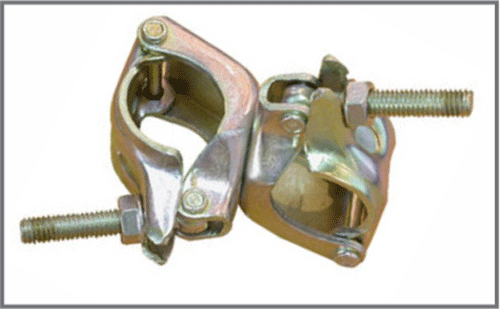

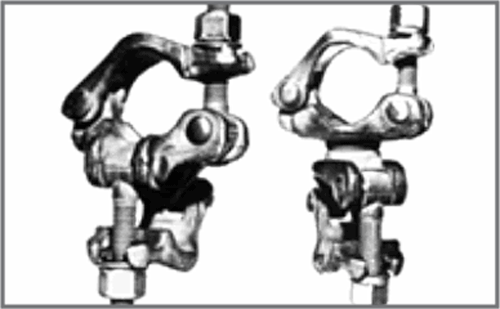

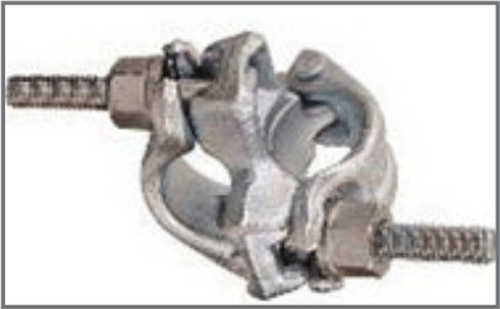

Forged Swivel Couplers Size : 48mm, 51mm.
Min. Slip Load : 12.5 KN.
Min. Distortion Load : 17 KN

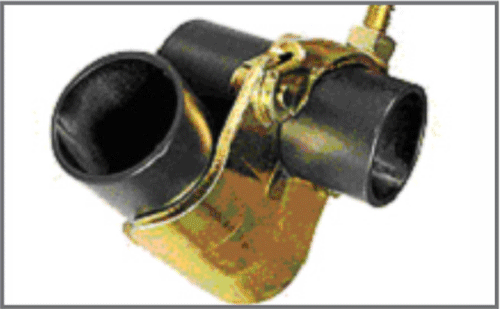

Putlog Couplers Size : 48mm & 51mm.
Min. Slip Load : 1.25 KN
Min. Distortion Load : 2.30 KN

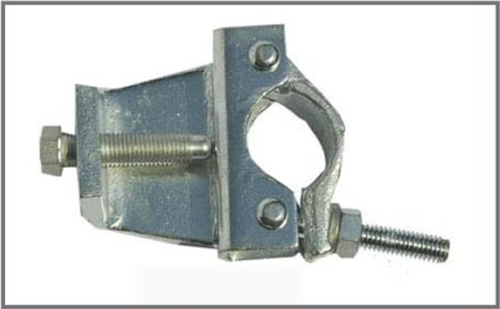

Girder Couplers Size : 48mm.
Min. Slip Load
  X axis – 10 KN per pair.
  Y axis – 30 KN per pair.
  Z axis – 6.5 KN per pair

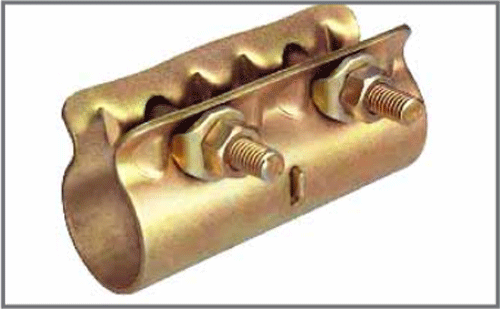

Sleeve Couplers Size : 48mm & 51mm.
Min. Slip Load : 6 KN
Min. Distortion Load : 19 KN
Pressed Right Angle Couplers Size : 48mm & 51mm.
Min. Slip Load : 12.5 KN
Min. Distortion Load : 17 KN
Pressed Swivel Couplers Size : 48mm, 51mm.
Min. Slip Load : 12.5 KN.
Min. Distortion Load : 17 KN

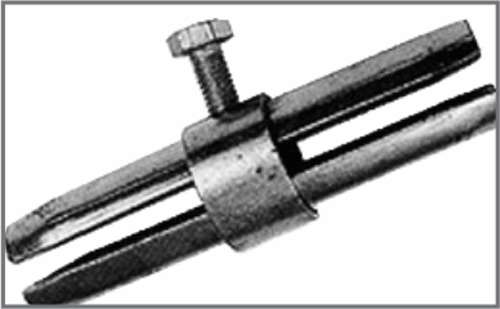

Expansion joint pin Made Out of 5mm flats, used to connect 40NB pipes in horizontal positions.

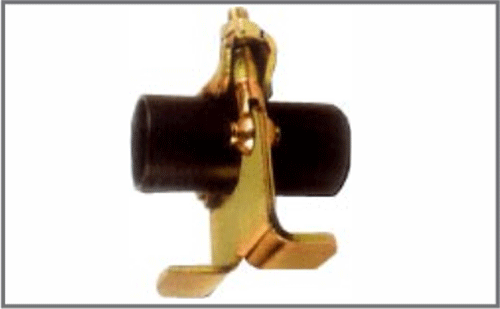

Toe Board Bracket It is used to hold toe board brackets in place by coupling itself to the standards.

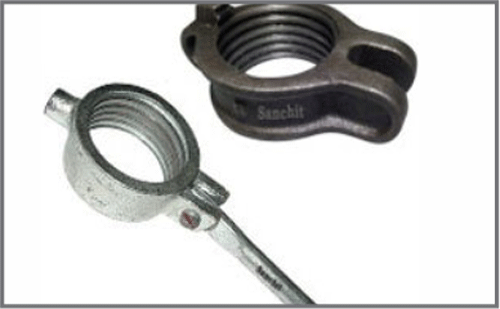

Jack Nut Jack Nuts are used for manufacturing adjustable jacks / adjustable 'U' heads. These nuts are made of malleable cast iron.

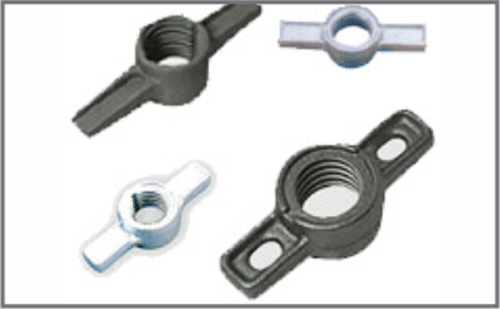

Prop Nuts As the name suggests these nuts are used in making of telescopic adjustable props. These are made out of malleable cast iron.

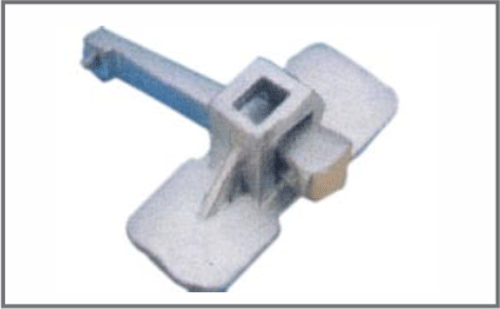

Rapid Clamp Are versatile, in usage of tie rods being fastened using unthreaded rods also. The wedge when lifted up admits 8mm rods/ tor steel which locks on when the wedge is hammered. The body is nail hammered to the ply form.

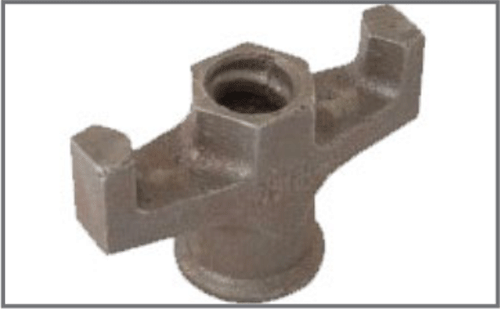

Wing Nut As a name suggests these are used to tighten the tie rods without using any special tool.

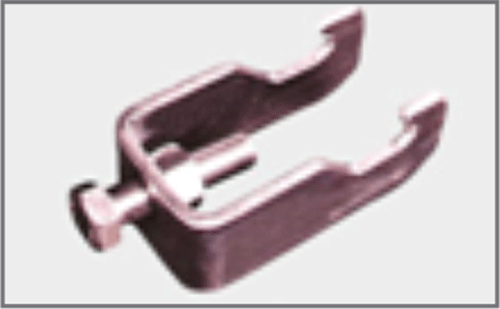

Tube Clip Are used to hold wall forms/ soldiers together in place using 40NB pipe as a stiffer.
Stirrup Nut These are used specially in making of 'U' heads/stirrup heads. These are made out of malleable cast iron.

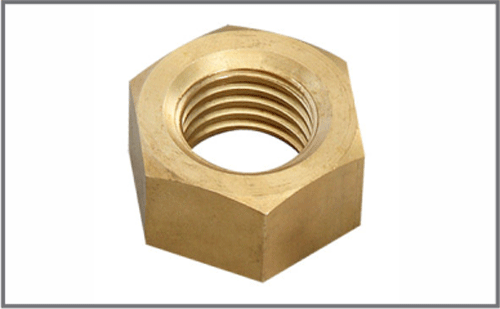

Hex Nut Made out of M.S 25 hexagonal section for fastening tie rods in place.
Panel Wedge - Wedge&Clip out of 5/6mm flats to hold wall forms/ soldiers together without leaving any gap

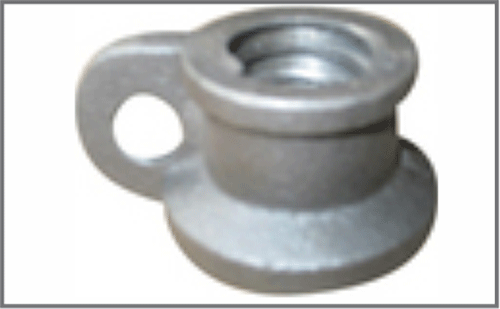

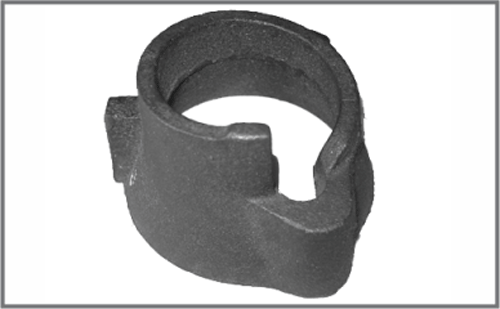

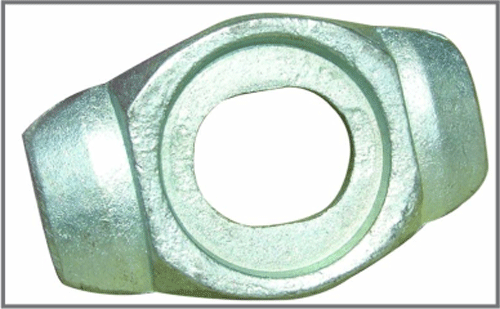

Top Cup Made out of malleable cast iron used manufacturing of cup lock standard verticals. Paired with top cup.

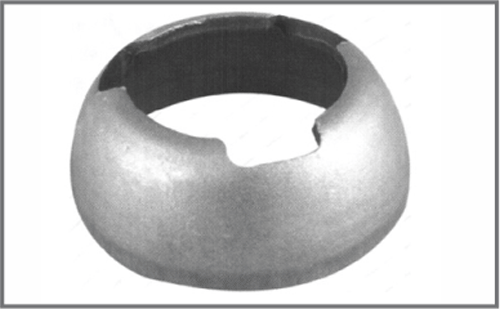

Bottom Cup Made out of 5mm pressed steel welded to the 40 NB pipe in conjunction. Top cup to lock on to the horizontal ledgers.

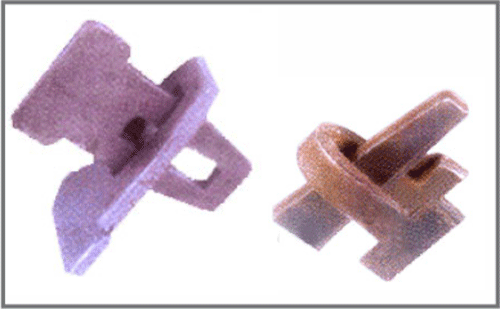

Ledger Blade Are used to hold wall forms/ soldiers together in place using 40NB pipe as a stiffer.

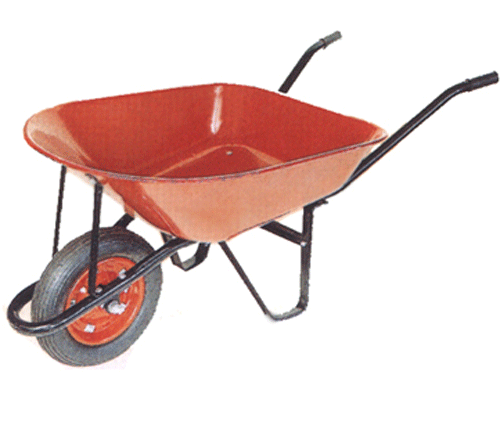

Wheel Barrow Mainly used in construction site to carry materials from one place to other, where the terrain may not always be plain.

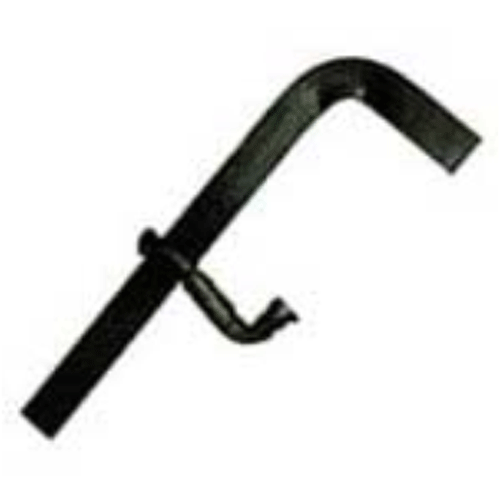

SHIKANJA / CLAMP Widely Used in Construction to secure timber runners at fixed dimensions.

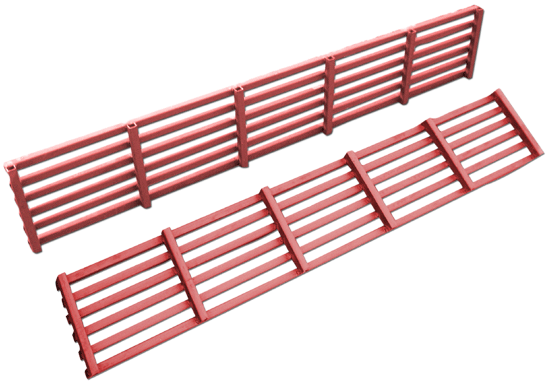

JAALI Scaffolding Jaali is made from mild steel square tubes and is used in all the constructions sites in India
LVL SCAFFOLD BOARD Size - 38 x 225 x 3980 mm
(other sizes also available)
Material - Radiate pine, Glue - WBP
Waterproof paint coat at both ends

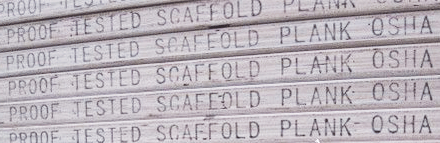

Marking - OSHA proof tested
