Tubes & Hollow Section

Round Hollow Sections

• Round - 10mm OD to 400mm OD with thickness from 1.2mm to 20mm

• Rectangle - 10 x 20mm to 350 x 450mm with thickness from 1.2mm to 16mm


Within our standard product range	X Out of our standard product range
* Sizes mentioned in table are our standard product range, apart from these we can also produce sizes as per customer requirements.

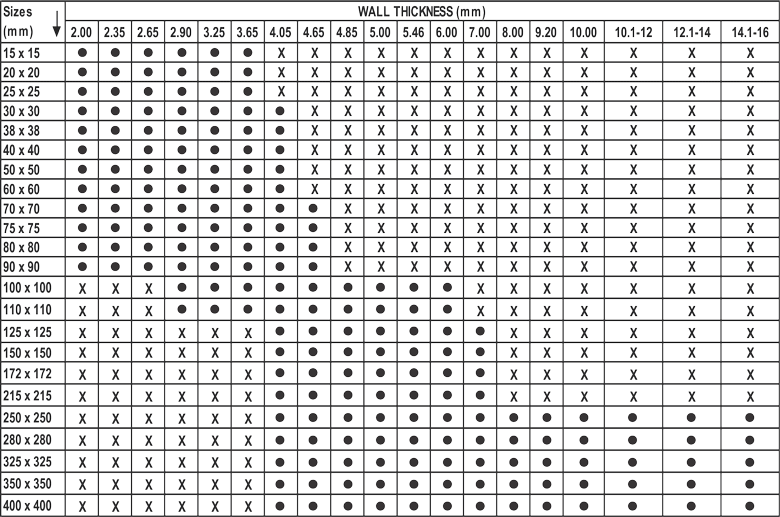

• Square - 10 x 10mm to 400 x 400mm with thickness from 1.2mm to 16mm

* Sizes mentioned in table are our standard product range, apart from these we can also produce sizes as per customer requirements.

Thickness (all sizes)	+or-10 percent	Thickness (all sizes)	Tolerance inclusive of allowance
Squareness of corners	90+or2	Largest outside dimension across	convexity and concavity.
Radius of corners inside Outside	Between the limit of t/10 & t. Between t/2 and 3t (Where t is thickness of the section	flat 63.5 mm and under over 63.5 mm to 90 mmincl. Over 90 mm.	+ or - 0.50 mm + or - 0.60 mm + or - 0.75 mm
Twist	2 mm + 1.0 mm per meter
Concavity	10% of length of side
